LORIOT

To use the LORIOT cloud, we recommend using the LORIOT packet forwarder.

To configure the LORIOT cloud you will have to do the following steps:

1. Register the gateway in the LORIOT console
2. Start the forwarder

Register the gateway in the LORIOT console

You can create a free LORIOT community account that will allow you to register a single gateway.

1. Create a LORIOT account on the corresponding regional server
2. Click on [+ Register a new gateway]
3. Select the LORIX One gateway
4. Complete the registration form and validate it

Start the forwarder

Set LORIOT as the active forwarder.

• GUI
• CLI

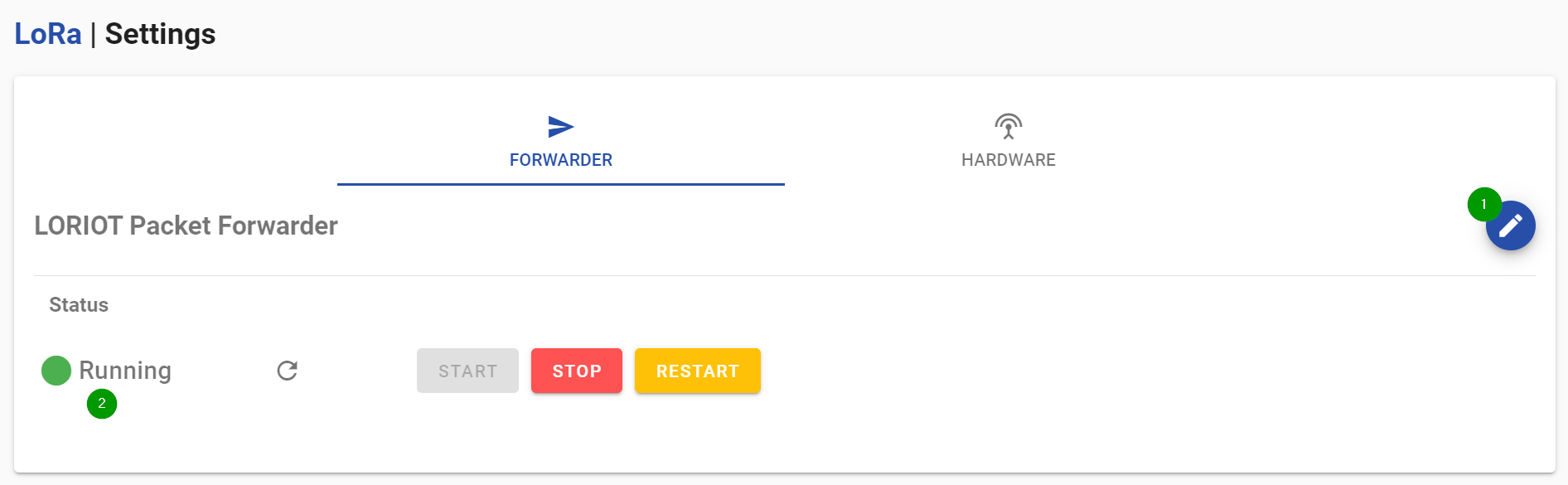

1. On the LoRa Settings page, on the FORWARDER tab, use the top right edit (1) button.
2. In the “Change forwarder” popup, select the LORIOT Packet Forwarder and press Apply.
3. Start the forwarder
4. The forwarder will go to Running (2) state after a successful start

sudo manager lora forwarder set loriot

Copy

BASH

settings active forwarder to 'loriot'...        done

If you refresh the gateway page on the LORIOT dashboard, you'll see that it is now connected !
